Walkways on Elefeet® Pedestals

  • Roof terrace with wooden decking
  • Roof terrace with concrete slabs

Walkways and Terraces on ZinCo Elefeet® Pedestals

Some roofs do not have the loadbearing capacity to carry the load of the base layer, bedding material and surface layer. In this instance the ZinCo Elefeet® are able to bear the load, and as a result of its minimal weight, only the weight of the surface has to be taken into consideration. Due to the high stability and loadbearing capacity of the pedestals, no chippings are needed as conventional laying material eliminating the need for sometimes costly transport and distribution of the material on the base area.

Thanks to the versatile and flexible range of accessories, it is possible to react to almost any constructional requirement and lay any desired type of decking and paving.

Our configurator guides you quickly and easily through the planning of your terrace.

ELEFEET®-CONFIGURATOR

The installation of Elefeet® offers various important benefits:

  • Precise levelling with vertical adjustment swivel including reverse rotation protection
  • Very low weight – only the surface layer needs to be considered
  • Simple to install due to easy to-handle materials and high flexibility
  • No transport problems (gravel, mortar) to and at the installation site
  • Spring-loaded detent nose warns against unscrewing too far
  • Open joints, free from pollution and weeds
  • Firm support for cut-to-size slabs in the edge area
  • Load bearing capacity up to 600 kg/pc
  • Safe drainage of paving/decking and roof.
  • Usable on roofs without any slope due to large drainage cavity.
  • Excellent aeration of paving and decking.
  • Hollow space usable for the installation of all types of cables.

See our installation video

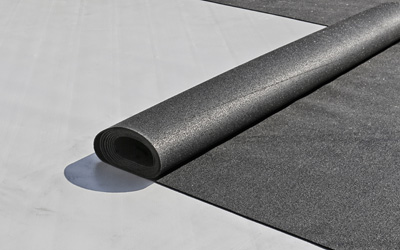

Elastosave mat The protection of the waterproofing is ensured by the Protection Mat Elastosave ES 30, which was specially designed for the use under Elefeet®.

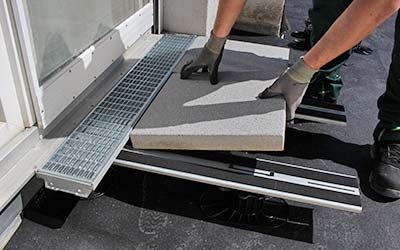

The Cantilever Arm Support allows for close connection to doors or insulating fillets.

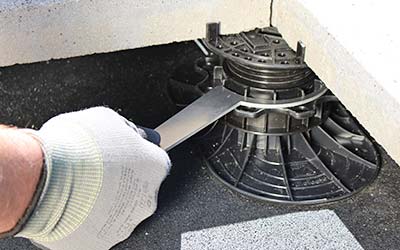

Adjusting Elefeet® pedestals Each Elefeet® is vertically adjustable by turning the swivel. Even after installation, a single slab can be lifted to adjust the relevant Elefeet®.

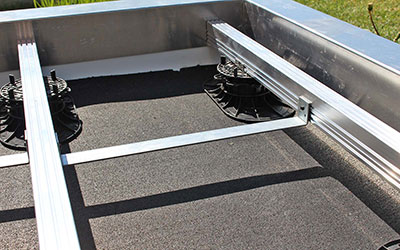

Elefeet® rail system The Elefeet® rail system is a quick and stable addition to the range. The rails are levelled using the two external pedestals, and only a few Elefeet® elements are needed in between.

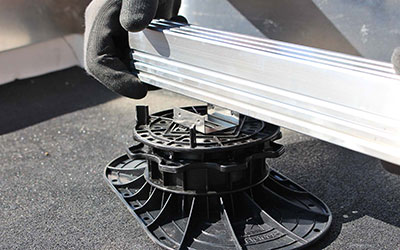

Retainer clips are clipped onto the Elefeet® pedestals The quick-fix rail support clip allows the rail to be easily clipped into the head plate of the Elefeet® Pedestals.
